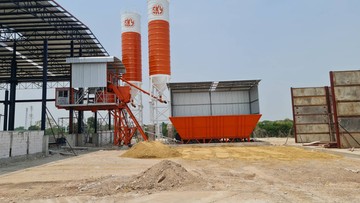

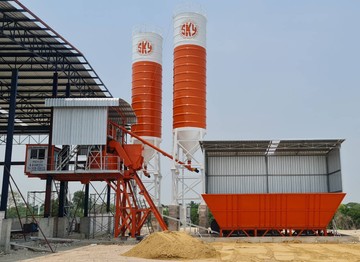

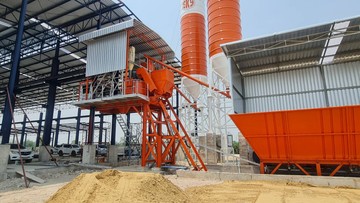

Concrete plant Hopper type » BPH3S-60(MP1500)
Lists of component
Power require for whole system
Description | Quantity | Each unit power(Kw) | Total power(Kw) |
Air compressor | 1 | 5.5 | 5.50 |
| Vibrator at sand discharge gate 300W. | 2 | 0.3 | 0.60 |
| Extracting conveyor belt | 1 | 7.5 | 7.50 |
| Vibrator at aggregate weighing bin 200W. | 1 | 0.2 | 0.20 |
Vibrator at Aggregate standby hopper 200W. | 1 | 0.2 | 0.2 |

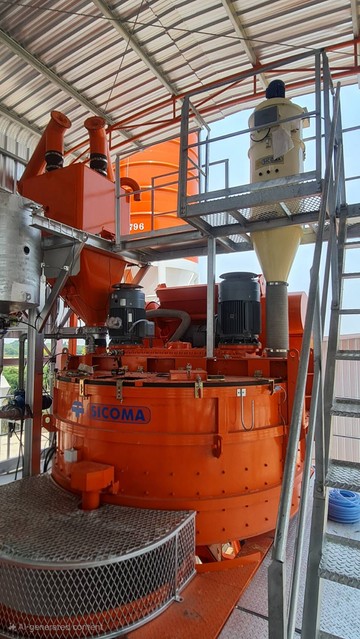

Planetary Mixer motor | 2 | 37 | 74.00 |
| Hydraulic pump for mixer discharge gate | 1 | 2.2 | 2.20 |

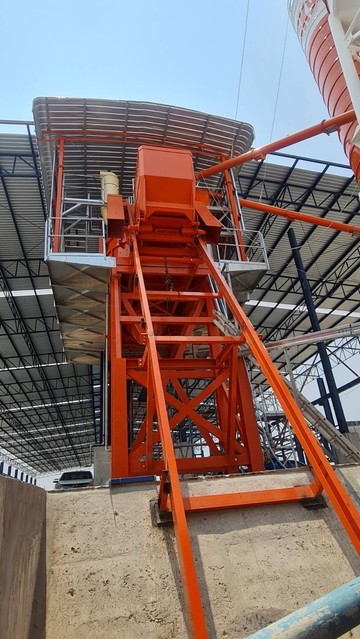

| Aggregate skip Hoist | 1 | 15 | 15.00 |
| Cement screw | 2 | 11 | 22.00 |
| Cement vibrator 100W. | 1 | 0.1 | 0.10 |
| Main Water pump | 1 | 5.5 | 5.50 |
| Discharge Water pump | 1 | 1.5 | 1.50 |
Cleaning Water pump | 1 | 2.2 | 2.2 |
| Water pump for filling truck mixer | 1 | 2.2 | 2.20 |
| Additive pump | 4 | 0.37 | 1.48 |
Total (Kw) | 140.2 | ||

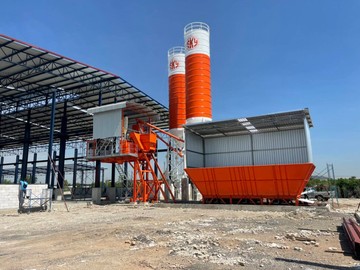

Model:BPH3S-60(MP1500) (Hopper type)
Production capacity 60-70 m3/h
Equip with:

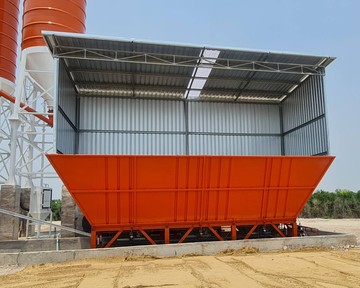

• 1 no. Aggregate hopper capacity 45m3 with 3 compartments
• 3 nos. Aggregate discharge cone with pneumatic cylinder and solidnoil valve
• 2 nos Vibrator at sand bin

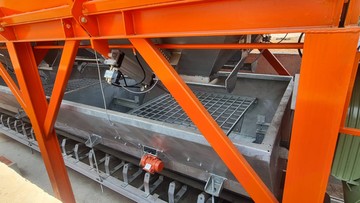

• 1 no. Aggregate weighing bin fix with 4 loadcell
• 1 no. Vibrator at weighing bin
• 1 no Extracting belt size 800 mm.
• 1 no. Loading inclined belt size 800 mm.

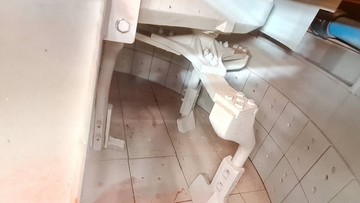

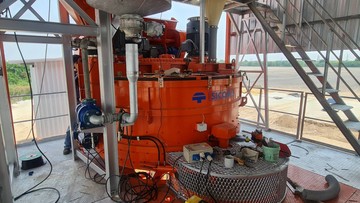

• 1 no. Twinshaft mixer model: MAO1750/1250 mixing capacity 1.25m3/batch
• 1 no. Cement weighing bin fix with 3 loadcell
• 1 no Water weighing bin fix with 1 loadcell
• 1 no. Additive weighing bin fix with 1 loadcell
• 3 nos cement screw dia. 8" L 8M. feeding cement from silo to cement batcher
• 1 no. Control cabin 4x2.5M. fix with air-con
• 1 no. Control board with fully automatic run by computerize and printer for report.
• 1 no. Air compressor
• 3 nos. Water pump , one for weighing , one for cleaning , one for filling truck mixer
• 4 nos. Additive pump , two for weighing , one for inject into mixer , one for cleaning
