SPECIFICATION :

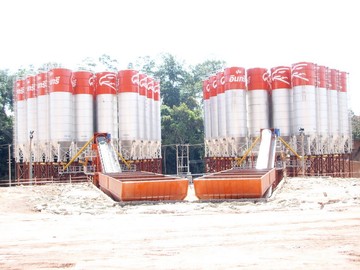

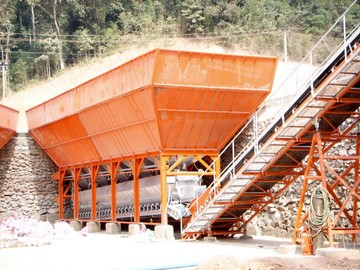

 • 1 No. Aggregate hopper cap. 120 m3 with 4 compartments.
Build up from steel profile and steel plate with partition wall loading width per compartment approx 3.2M. , Grid blasting , primer coating with finished paint.
 • 4 Nos. Aggregate discharge cone depth in galvanize.
Build up from steel plate with discharge gate hang on hinge
 • 8 Nos. Pneumatic cylinder with solenoid valve.
Use to control discharge gate opening
 • 2 Nos. Vibrator at sand bin.
Use to vibrate last 2 compartments for small aggregate and fine sand
 • 1 No. Aggregate weighing bin depth in galvanize fix with
4 Nos. of  loadcell. Build up from steel plate lay under the  discharge gate with Reinforcement
 • 1 No. Vibrator at weighing bin.
Fix at side of weighing bin use to vibrate fine aggregate while unloading
 • 1 No. Extracting belt size 800 mm. complete with gear box and motor.
Extracting belt hang under the weighing bin use to unload the aggregate to the loading incline conveyor belt , roller support , galvanized roller and flat rubber belt width 800mm. EP120 with 3 ply.
 • 1 No. Aggregate loading incline belt size 1000 mm. complete with gear box and motor. Structure build up from steel profile , roller support , galvanized roller and slated rubber  belt width 1000mm. EP120 with 3 ply
 • 1 Set Support steel structure for loading belt.
Build up from steel pipe , walking platform and roof cover
 • 1 No. Aggregate storage hopper on top of mixer to store 1 batch of aggregate
Build up from steel plate to store 1 batch of aggregate with twin discharge gate under the hopper , twin pneumatic cylinder with solenoid valve and vibrator

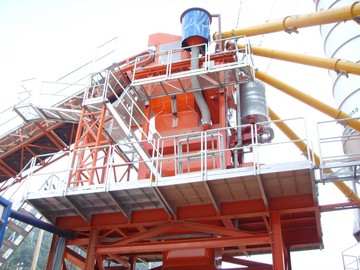

 • 1 No. Main mixer Twinshaft Model: MAO 3000/2000 mixing capacity  2 M3 per batch complete with auto greasing pump and sensor.
 • 1 No. Cement weighing bin fix with 2 loadcell.
Build up by steel plate hang with 2 loadcell with pneumatic discharge butterfly valve and vibrator
 • 1 No. Water weighing bin fix with 1  loadcell.
Build up by steel plate depth in galvanized hang with 1 loadcell  with pneumatic discharge butterfly valve
 • 1 No. Additive weighing bin fix with 1 loadcell.
Build up by clear plastic tube hang with 1 loadcell  with pneumatic discharge pinch valve
 • 1 Set Steel structure for mixer support and platform.
Build up by steel profile , grid blasting , primer coat and finished paint  Platform  depth in galvanized.
 • 4 Nos. Cement screw Dia. 273 mm. L. 8 m.
Use to load cement from silo to cement weighing bin

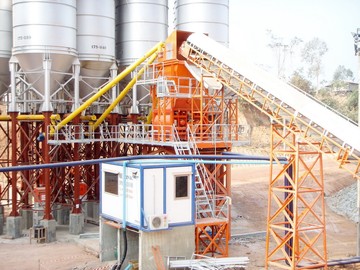

 • 1 No. Control cabin with air condition.
Build by insulated wall and window size L8M. W2.5M. H2.5M.
 • 1 No. Control board fully automatic by computerize and printer for report.
Control board with indicator for showing load of  aggregate , cement , water and additive , push button and indicator lighting for manual control Fully automatic control run by PLC and computerize with software ready for store unlimited mixing formula memories , record use sage of all material , record truck number , driver and printer to print delivery note System ready with security password for adjustment by authorize person
 • 1 No. Air compressor.
Use to supply air for whole plant system
 • 1 No. Water pump for batching.
Use to pump water into water weighing bin
 • 1 No. Water pump for discharge water from weighing bin to mixer.
Use to inject water from water weighing bin into mixer to get faster production and 3 bypass manual valves for case of pump break down
 • 1 No. Water pump for cleaning.
Use to clean the mixer and general use
 • 4 Nos. Additive pump
Two pump use for 2 type of additive to pump additive into weighing tank , one pump use to discharge additive into mixer and one pump for cleaning
