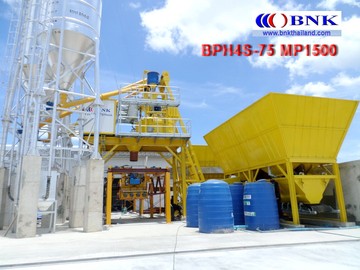

BPH4S-75 MP1500 with Planetary mixer MP2250/1500
Model : BPH4S-75 MP1500 with Planetary mixer MP2250/1500
Lists of component Power require for whole system
Model:BPH4S-75 MP1500 (Hopper type)
Production capacity 65-75m3/h
• 2 no. Aggregate hopper capacity 45m3 with 2x2 compartments
• 8 nos. Aggregate discharge cone with pneumatic cylinder and solidnoil valve
• 2 nos Vibrator at sand bin
• 2 nos. Aggregate weighing bin fix with 2x4 loadcell
• 2 nos. Vibrator at weighing bin
• 2 nos Extracting belt size 800mm.
• 1 no. Skip hoist with double speed motor brake.
• 1 no. Planetary mixer model: MP2250/1500 mixing capacity 1.5m3/batch
• 1 no. Cement weighing bin fix with 3 loadcell
• 1 no Water weighing bin fix with 1 loadcell
• 1 no. Additive weighing bin fix with 1 loadcell
• 3 nos cement screw dia. 10" L 8M. feeding cement from silo to cement batcher
• 1 no. Control cabin fix with air-con
• 1 no. Control board with fully automatic run by computerize and printer for report.
• 1 no. Air compressor
• 3 nos. Water pump , one for weighing , one for cleaning , one for filling truck mixer
• 4 nos. Additive pump , two for weighing , one for inject into mixer , one for cleaning
