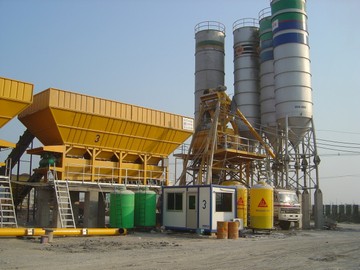

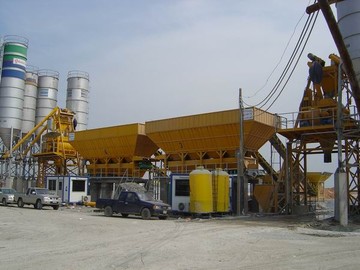

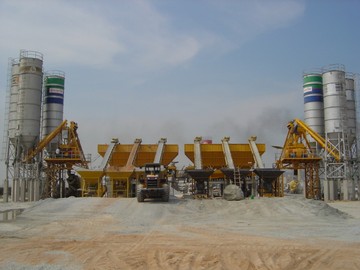

Concrete plant Hopper type » BPH4S-120
Power require for whole system
Motor capacity for each component
Description | Quantity | Each unit power(Kw) | Total power(Kw) |
| Air conpressor | 1 | 5.5 | 5.5 |
| Vibrator at bottom sand cone | 2 | 0.3 | 0.6 |
| Vibrator at agregate weighing bin | 1 | 0.3 | 0.3 |
| Extracting belt motor | 1 | 15 | 15.0 |
| Mixer motor | 2 | 55 | 110.0 |
| Grease pump | 1 | 0.37 | 0.4 |
| Skip motor | 1 | 45 | 45.0 |
Hydraulic pump | 1 | 2 | 2.0 |
| Cement screw | 4 | 18.5 | 74.0 |
| Cement vibrator | 1 | 0.1 | 0.1 |
| Water pump | 1 | 10 | 10.0 |
Total (Kw) | 262.9 | ||

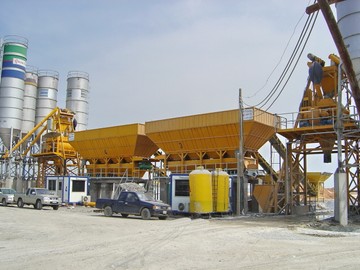

Model:BPH4S-120 (Hopper type)
Production capacity 60m3/h
Equip with:

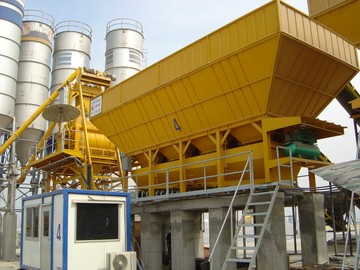

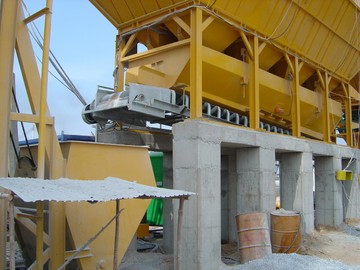

• 1 no. Aggregate hopper capacity 120m3 with 4 compartments
• 4 nos. Aggregate discharge cone with pnuematic cylinder and solidnoil valve
• 2 nos Vibrator at sand bin

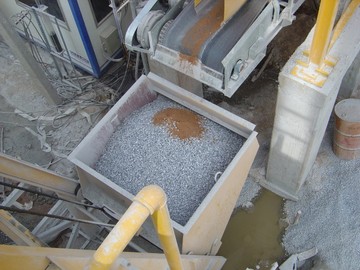

• 1 no. Aggregate weighing bin fix with 4 loadcell
• 1 no. Vibrator at weighing bin

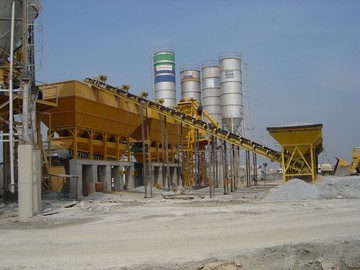

• 1 no Extracting belt size 800mm.
• 1 no. Skiphoist with 2 speed motor and rail
• 1 no. Twinshaft mixer model:MAO3000/2000 mixing capacity 2m3/batch
• 1 no. Cement weighing bin fix with 3 loadcell
• 1 no Water weighing bin fix with 1 loadcell
• 1 no. Additive weighing bin fix with 1 loadcell
• 4 nos cement screw dia. 10" L 8M. feeding cement from silo to cement batcher

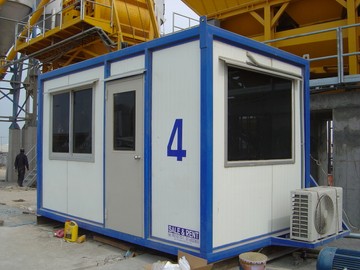

• 1 no. Control cabin 4x2.5M. fix with air-con

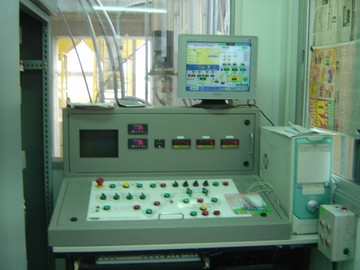

• 1 no. Control board with fully automatic run by computerize and printer for report.
• 1 no. Air compressor
• 3 nos. Water pump , one for weighing , one for cleaning , one for filling truck mixer
• 4 nos. Additive pump , two for weighing , one for inject into mixer , one for cleaning
