Concrete batching plant mobile type » MOB100
Power require for whole system
Motor capacity for each component
| Description | Quantity | Each unit power(kw) | Total power(kw) |
| Air compressor | 1 | 7.5 | 7.5 |
| Vibrator at samd discharge gate 100W. | 4 | 0.37 | 1.5 |
| Incline loading conveyor belt. | 2 | 11.0 | 22.0 |
| Vibrator at aggregate weighing bin 200W. | 1 | 0.2 | 0.2 |
| Planetary mixer MP 3750/2500 motor. | 2 | 55.0 | 110.0 |
| Hydraulic pump for mixer discharge gate | 1 | 2.0 | 2.0 |
| Water pump to discharge into mixer | 1 | 5.5 | 5.5 |
| Dust collecter | 1 | 1.5 | 1.5 |
| Cement screw. L 9.5M. | 2 | 15.0 | 30.0 |
| Cement screw. L 9.5M. | 2 | 15.0 | 30.0 |
| Cement vibrator 100W. | 2 | 0.1 | 0.2 |
| Main water pump. | 1 | 5.5 | 5.5 |
| Cleaning water pump. | 1 | 2.2 | 2.2 |
| Water pump for filling truck mixer | 1 | 2.2 | 2.2 |
| Additive pump. | 6 | 0.37 | 2.2 |
| Aggregate feeding conveyor belt. | 2 | 7.5 | 15.0 |
| Vibrator at sand bin 200W. | 1 | 0.2 | 0.2 |
| total | 237.7 KW | ||
Mobile Concrete Batching Plant With 2.5 CBM. Planetary Mixer.
Specification :
• Aggregate hopper with 4 compartments cap. approx 60m3
• 8 nos. pneumatic cylinder for aggregate discharge gate with solidnoid valve.
• 4 nos.Vibrator for sand compartment.
• Aggregate weighing bin hang with loadcell.

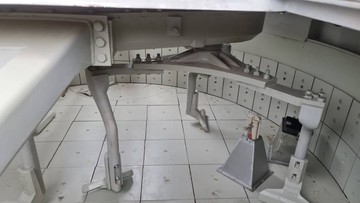

• Main mixer type Twinshaft SICOMA Model MP 3750/2500 mix vibrate concrete 2.5 M3 per batch.
• Aggregate loading conveyor belt.
• Support structure.
• Cement batcher fix with loadcell and butterfly valve.
• Cement screw Dia. 273 mm. 4 units.
• Water batcher fix with loadcell and butterfly valve
• Additive batcher fix with loadcell
• Control panel with fully automatic run by computerize ready with printer for print report and delivery
note.
• Air compressor.
• Water pump

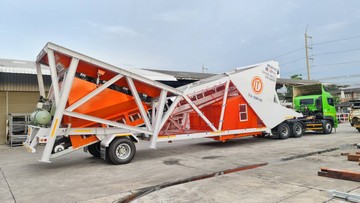

• Full machine build on one main frame as Semi-Trailer type 1 axle with 4 tire.
