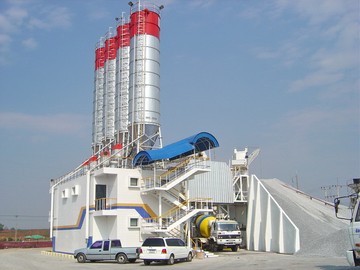

Concrete batching plant Star type » 100WH
Model : Star100WH
Motor capacity for each component
Description | Quantity | Each unit power(Kw) | Total power(Kw) |
| Air conpressor | 1 | 4 | 4.0 |
| Vibrator at bottom sand cone | 2 | 0.4 | 0.8 |
| Vibrator at agregate weighing bin | 1 | 0.4 | 0.4 |
| Dragline winch motor | 1 | 30 | 30.0 |
| Swing gear motor | 1 | 0.75 | 74.0 |
| Mixer motor | 2 | 37 | 2.0 |
| Skip motor | 1 | 30 | 30.0 |
Hydraulic pump | 1 | 2 | 2.0 |
| Cement screw | 4 | 11 | 44.0 |
| Cement vibrator | 1 | 0.1 | 0.1 |
| Water pump | 1 | 5.5 | 5.5 |
| Additive pump | 4 | 0.75 | 3.0 |
Total (Kw) | 194.6 | ||
Production capacity 100-110m3/h
Equip with :

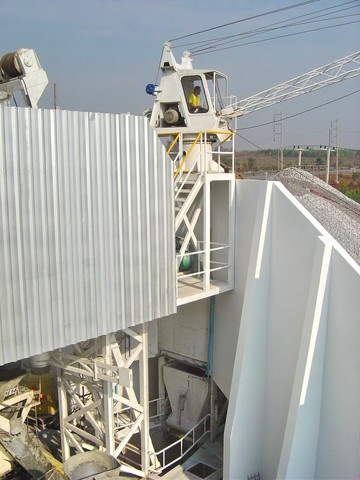

• 1 no. Dragline with boom length 16.5M. Pneumatic joy stick control
• 4 nos. Aggregate discharge gate with pneumatic cylinder and solidnoil valve
• 1 no Vibrator at sand bin

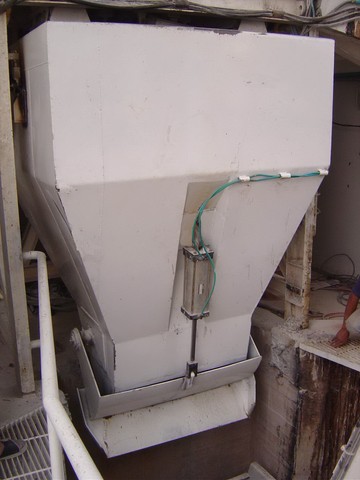

• 1 no Aggregate weighing bin fix with 4 loadcell
• 1 no. Vibrator at weighing bin
• 1 no. Skip hoist with double speed motor

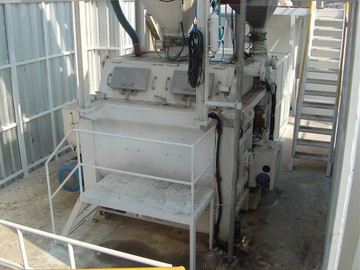

• 1 no Twinshaft mixer Model: MAO3000/2000 mixing capacity 2m3/batch

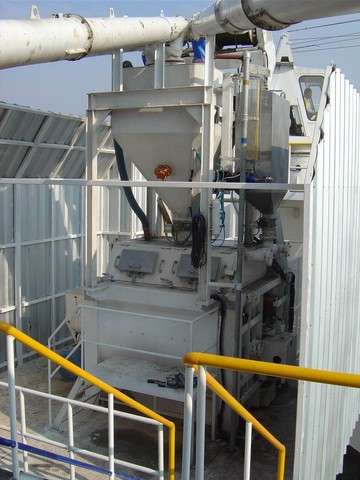

• 1 no. Cement weighing bin fix with 3 loadcell
• 1 no. Water weighing bin fix with 1 loadcell
• 1 no. Additive weighing bin fix with 1 loadcell
• 4 nos Cement screw dia. 10" L 8M. feeding cement from silo to cement batcher
• 1 no. Control board with fully automatic run by computerize and printer for report.
• 1 no. Air compressor
• 4 nos. Water pump , one for weighinh , one for inject into mixer , one for cleaning ,
one for filling truck mixer
• 4 nos. Additive pump , two for weighing , one for inject into mixer ,one for cleaning
