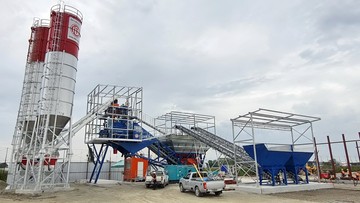

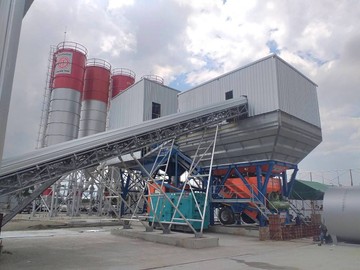

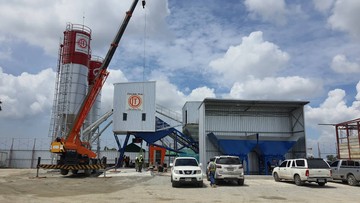

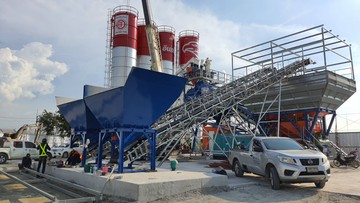

Concrete batching plant mobile type » MOB120(MAO3000)
Power require for whole system
Motor capacity for each component
| Description | Quantity | Each unit power(kw) | Total power(kw) |
| Air compressor | 1 | 7.5 | 7.5 |
| Vibrator at samd discharge gate 100W. | 4 | 0.37 | 1.5 |
| Incline loading conveyor belt. | 2 | 11.0 | 22.0 |
| Vibrator at aggregate weighing bin 200W. | 1 | 0.2 | 0.2 |
| Twinshaft mixer motor. | 2 | 55.0 | 110.0 |
| Hydraulic pump for mixer discharge gate | 1 | 2.0 | 2.0 |
| Auto grease pump mixer | 1 | 0.3 | 0.3 |
| Dust collecter | 1 | 1.5 | 1.5 |
| Cement screw dia.323.L11.8M.x3 L10.5M.x1 | 4 | 22.0 | 88.0 |
| Cement vibrator 100W. | 2 | 0.1 | 0.2 |
| Main water pump. | 1 | 7.5 | 7.5 |
| Cleaning water pump. | 1 | 2.2 | 2.2 |
| Water pump for filling truck mixer | 1 | 2.2 | 2.2 |
| Additive pump. | 6 | 0.37 | 2.2 |
| Aggregate feeding conveyor belt. | 2 | 7.5 | 15.0 |
| Vibrator at sand bin 200W. | 1 | 0.2 | 0.2 |
| total | 262.5 KW | ||
Mobile Concrete Batching Plant With 3 CBM. Twinshaft Mixer.
Specification :
• Aggregate hopper with 4 compartments cap. approx 60m3
• 8 nos. pneumatic cylinder for aggregate discharge gate with solidnoid valve.
• 4 nos.Vibrator for sand compartment.
• Aggregate weighing bin hang with loadcell.
• Main mixer type Twinshaft SICOMA Model MP 4500/3000 mix vibrate concrete 3 M3 per batch.
• Aggregate loading conveyor belt.
• Support structure.
• Cement batcher fix with loadcell and butterfly valve.
• Cement screw Dia. 323 mm. 4 units.
• Water batcher fix with loadcell and butterfly valve
• Additive batcher fix with loadcell
• Control panel with fully automatic run by computerize ready with printer for print report and delivery
note.
• Air compressor.
• Water pump

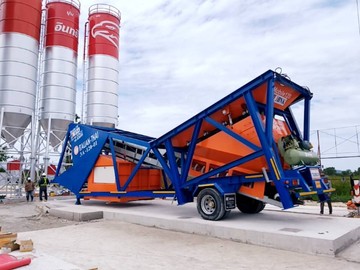

• Full machine build on one main frame as Semi-Trailer type 1 axle with 4 tire.
