Concrete plant Hopper type » BPH4S-60 P1000
Lists of component
Power require for whole system
Description | Quantity | Each unit power(Kw) | Total power(Kw) |
| Air conpressor | 1 | 3.75 | 3.8 |
| Vibrator at bottom sand hopper 200W./3000rpm | 2 | 0.2 | 0.4 |
| Vibrator at weighing bin 200W./3000rpm | 1 | 0.2 | 0.2 |
| Extracting belt | 1 | 7.5 | 7.5 |
| Mixer motor | 1 | 45 | 45.0 |
| Skip motor | 1 | 12/14 | 14.0 |
Hydraulic pump | 1 | 1.5 | 1.5 |
| Cement screw | 3 | 7.5 | 22.5 |
| Cement vibrator 100W./3000rpm | 1 | 0.1 | 0.1 |
| Water pump | 2 | 2.2 | 4.4 |
Total (Kw) | 99.4 | ||

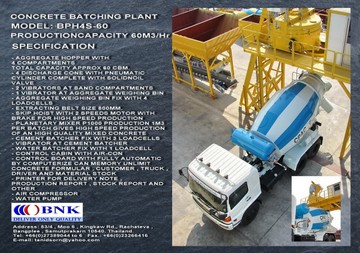

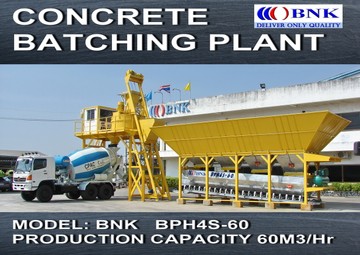

Model : BPH4S-60P (Hopper type)
Production capacity 60m3/h
Equip with:

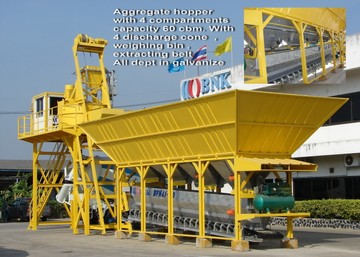

• 1 no. Aggregate hopper capacity 60m3 with 4 compartments
• 4 nos. Aggregate discharge cone with pnuematic cylinder and solidnoil valve
• 2 nos Vibrator at sand bin
• 1 no. Aggregate weighing bin fix with 4 loadcell
• 1 no. Vibrator at weighing bin
• 1 no Extracting belt size 800mm.

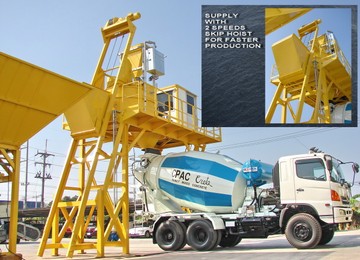

• 1 no. Skiphoist with 2 speed motor and rail
• 1 no. Planetary mixer model:P1000(3+3) mixing capacity 1m3/batch

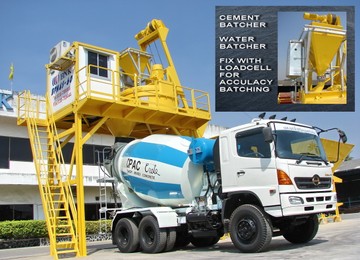

• 1 no. Cement weighing bin fix with 3 loadcell
• 1 no Water weighing bin fix with 1 loadcell
• 1 no. Additive weighing bin fix with 1 loadcell
• 3 nos cement screw dia. 8" L 8M. feeding cement from silo to cement batcher
• 1 no. Control cabin 4x2.5M. fix with air-con

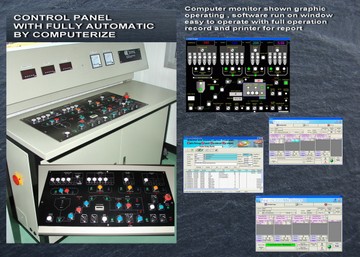

• 1 no. Control board with fully automatic run by computerize and printer for report.
• 1 no. Air compressor
• 3 nos. Water pump , one for weighing , one for cleaning , one for filling truck mixer
• 4 nos. Additive pump , two for weighing , one for inject into mixer , one for cleaning
